HS 1818 DV EVO2
- AI Driven
- Self Diagnostics
- Auto Threat Alerts
- 200-320KV
- High Speed Conveyor
- Training Software
- Motorized Roller Conveyors
- Dual View Imaging Technology
Product Highlights
Baggage X-ray Machine
Detailed
Specifications

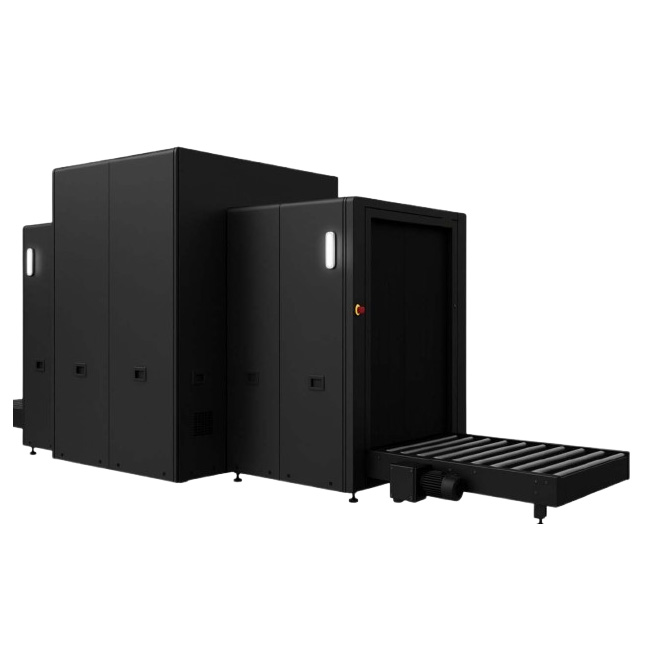

Introducing the all new HS 1818 DV EVO2 (Dual View) Security X-Ray Inspection System, with advanced screening technology that allows for the x-raying of a wide range of oversized items in two different orientations. Best suited for the screening of air cargo and hold baggage, it is considered to be the preferred size choice for freight forwarders, airports, warehouses, courier companies, customs and borders. Designed with a 1820 mm x 1820 mm tunnel size, the HS 1818DV EVO2 is one of the more sought after machine types on the market. This unit is built with high definition detectors and state of the art photo sensors that allow for even the smallest of objects to be picked up and scanned.
General
Construction: Steel Based
Tunnel Size: 71.65" (W) x 71.65" (H)
Length / Width / Height (in): 311 (L) x 99 (W) x 110 (H)
6613 lbs (uncrated)
Conveyor Height: 13.77"
Conveyor Speed: >0.22 meters per second
Maximum Conveyor Load: 6613 lbs (evenly distributed)
System Noise Level: <65 dB
Performance Index
Penetration: 48 mm Steel (guaranteed)
50 mm Steel (typical)
Resolution (wire gauge): 40 AWG (guaranteed)
42 AWG (typical)
X-Ray Generator
Tube Voltage: 200kV (adjustable) sealed oil bath
Tube Current: 0.6 - 1.0mA (adjustable)
Cooling / Duty Cycle: Sealed oil cooling / 100%
Beam Launch Angle: 80 degrees
Beam Direction: (1) Vertically Downward and (2) Horizontal
Operational Index
Storage Temp/Humidity: -20°C to 50°C
10% - 95% non-condensing
Working Temp/Humidity: 0°C to 45°C
10% - 95% non-condensing
Working Voltage: AC 110V (± to 10%)
50 Hz / 60 Hz ± 3 Hz
Power: 1.5kVA 3 KVA (motorized)
Leakage: <0.5 μ Sv / H
Dose Per Inspection: <3 μ Sv (typical)
Duty Cycle: 100% (no burn in necessary)
Imaging
- Image resolution: 1280 x 1024 x 24 bits
- Zoom 2x - 64x (dynamic, smooth and continuous)
- Full screen zoom (one click)
- High, low penetration
- Organic / inorganic stripping
- Picture Pure screening technology
- Super edge enhancement capability
- Operator assist (OA), automatic threat and density alert
- High Organic Mass Alert (HOMA)
- Automatic 100x screen image recall (last in first out)
- Dual-energy technology
- Color, black, white, inverse display
Image Recall
- 500,000 Images storage capacity (standard)
- Image conversion and export to jpg, png and bmp
- Image search and simulated playback
- Printer Ready
Additional Features

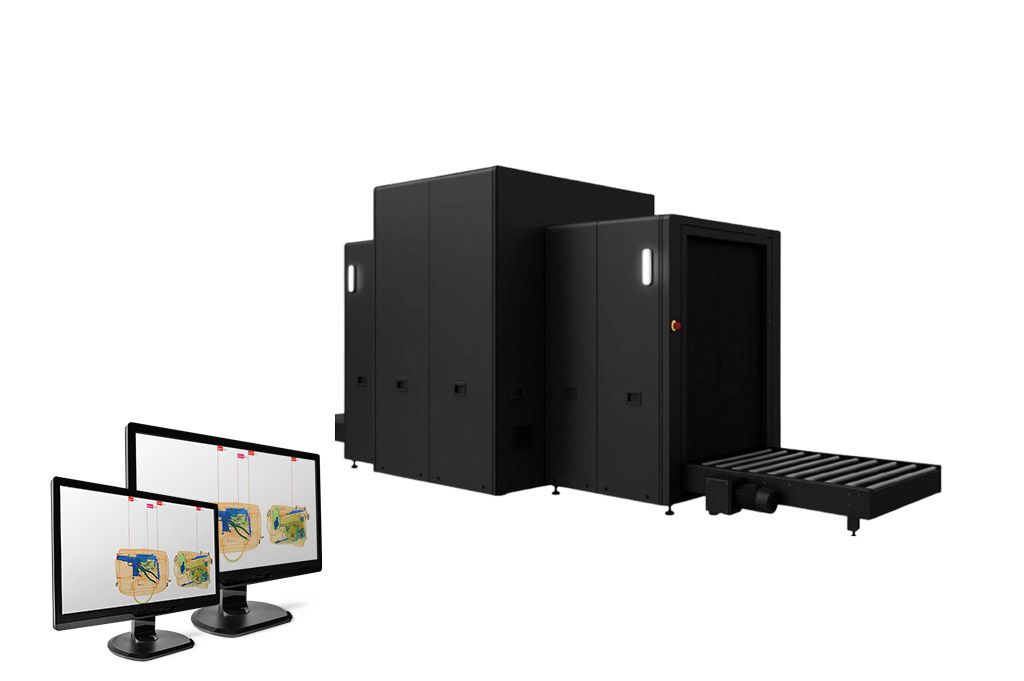

- 2 x 21” High resolution Monitor
- Input / Exit Rollers to any length required
- Multi language support
- Network capable
- CIRTS (Computer Item Recognition Training Software)
- 5 Years Parts Inclusive Warranty Only
- Operator Table
Compliance Standards
- Complies with film safety ISO 1600 / 33 DIN high speed photographic film
- All equipment is CE (Europe) certified and manufactured to ISO 9001:2015 TUV standards, FDA 21CFR-Part 1003/1004 approved for use in the USA
- Radiation safety: Meets all applicable laws and regulations with respect to X-ray emitting devices, with directives 2014/30/EC, 2014/35/EC, 2006/42/EC, FDA 21CFR, SAPHRA
- Proprietary quality management test piece: Steel step wedge, CU wires, shims, organic/inorganic
- *Approximate Values (Adjustable)
