HS 8065 DV EVO2
- AI Driven
- Roller Tables
- Self Diagnostics
- Auto Threat Alerts
- High Speed Conveyor
- Training Software
- Touch Screen Ready
- Dual View Imaging Technology
Product Highlights
Baggage X-ray Machine
Detailed
Specifications

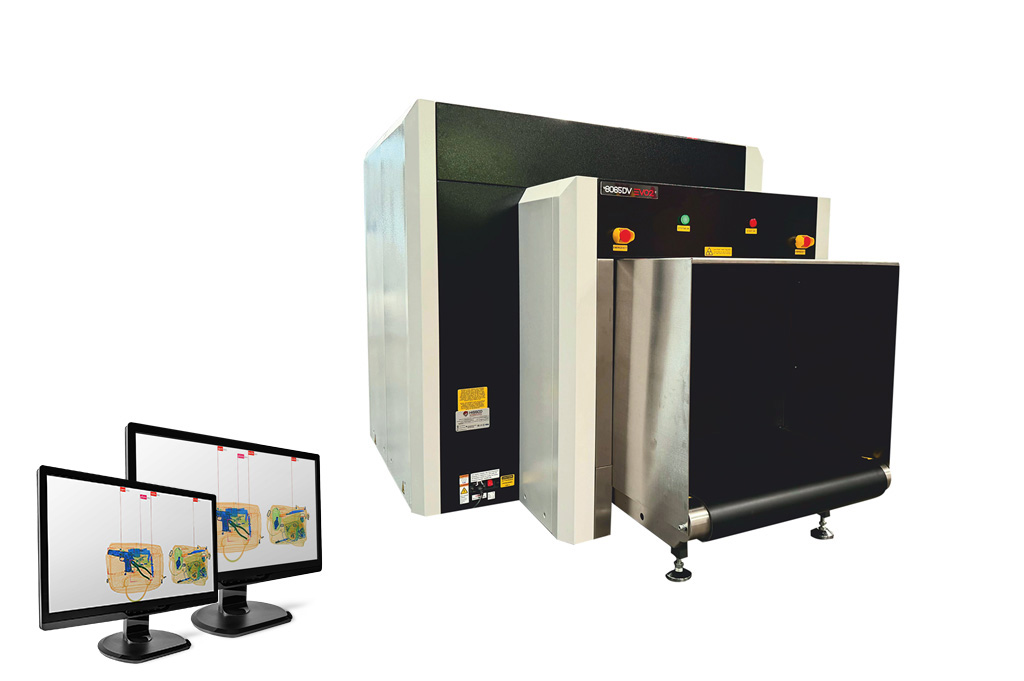

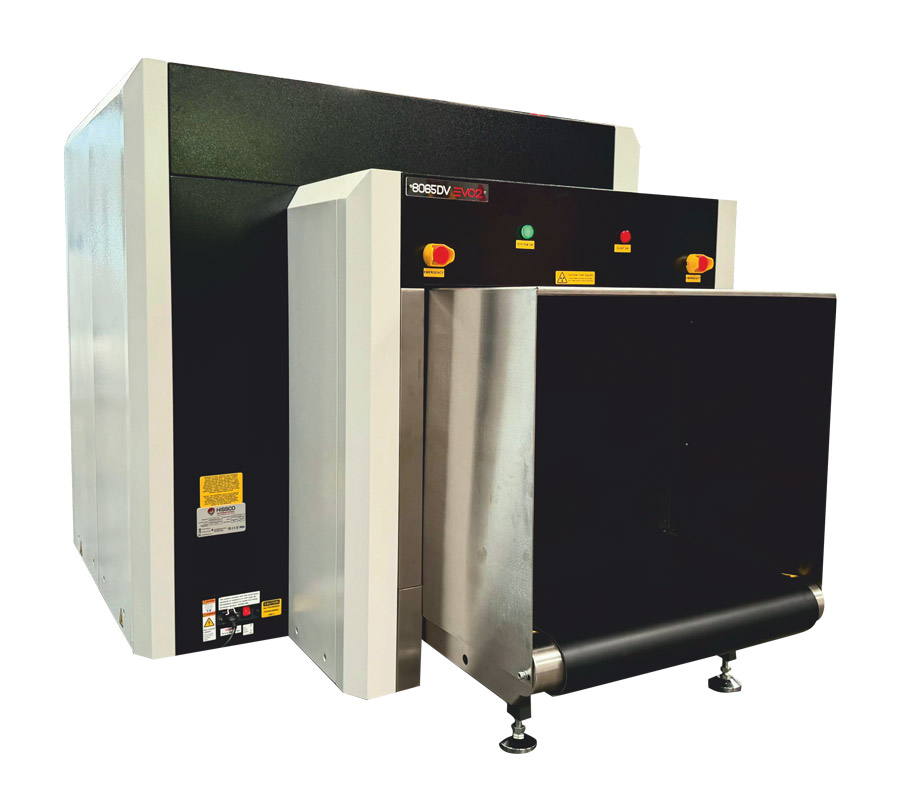

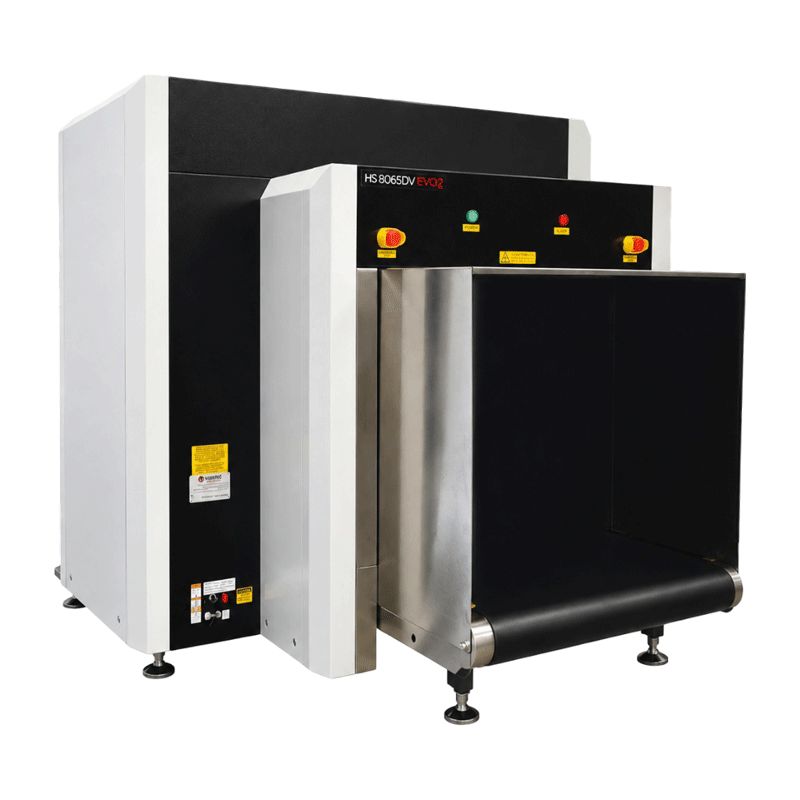

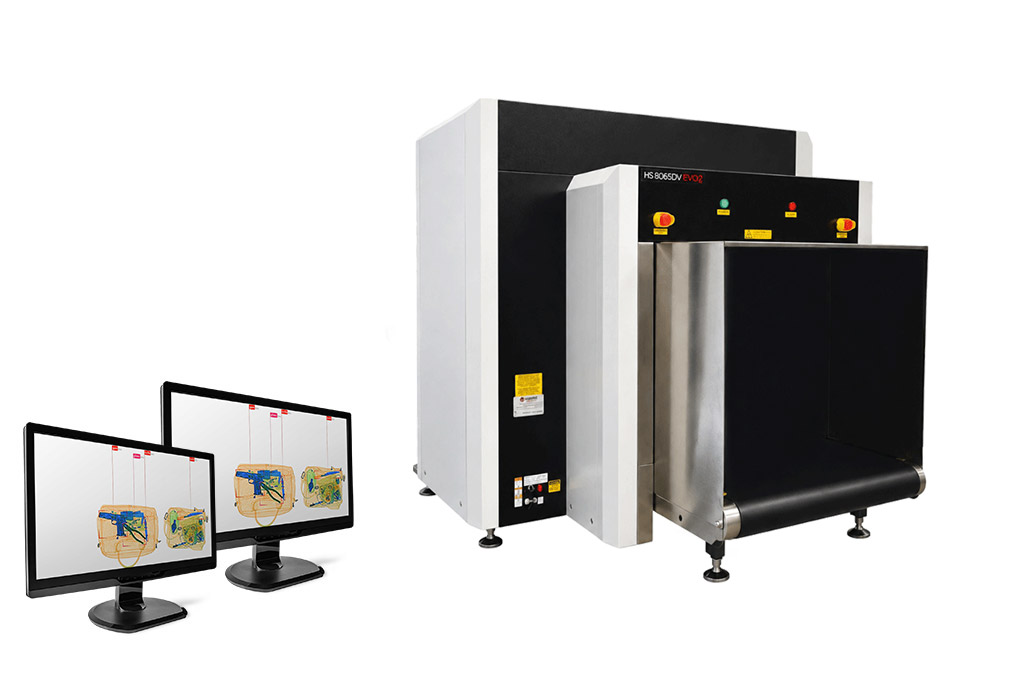

The HS 8065DV EVO2, is an ideal solution for hold baggage and freight screening requirements. With a tunnel size of 810mm x 660mm and Dual-View imaging screening technology, this unit is easily integrated into existing screening facilities.
General
Construction: Steel based
Tunnel Size: 31" (W) x 26" (H)
Length / Width / Height (in): 110" (L) 58" (W) x 56" (H)
2205 lbs (uncrated)
2645 lbs (crated)
Conveyor Height: 11.81"
Conveyor Speed: 0.22 meters per second
Maximum Conveyor Load: 440 lbs (evenly distributed)
System Noise Level: <55 dB
Performance Index
Penetration: 36 mm Steel (guaranteed)
38 mm Steel (typical)
Resolution (wire gauge): 40 AWG (guaranteed)
42 AWG (typical)
X-Ray Generator
Tube Voltage: 100 - 160 kV (adjustable)
sealed oil bath
Tube Current: 0.3 - 1.2mA (adjustable)
Cooling / Duty Cycle: Sealed oil cooling / 100%
Beam Launch Angle: (1) Vertically Downward and (2) Horizontal
Operational Index
Storage Temp/Humidity: -20°C to 50°C
10% - 95% non-condensing
Working Temp/Humidity: 0°C to 45°C
10% - 95% non-condensing
Working Voltage: AC 110V (±10%)
50 Hz / 60 Hz ± 3 Hz
Power: 0.5 kVA
Leakage: <0.5 μ Sv / H
Dose Per Inspection: <1.5 μ Sv (typical)
Duty Cycle: 100% (no burn in necessary)
Imaging
- Image resolution: 1280 x 1024 x 24 bits
- Zoom 2 - 64 x (dynamic, smooth and continuous)
- Full screen zoom (one click)
- High, low penetration
- Organic / inorganic stripping
- Picture Pure screening technology
- Super edge enhancement capability
- Threat Image Projection Library (TIP)
- Operator assist (OA), automatic threat and density alert
- High Organic Mass Alert (HOMA)
- Automatic 100x screen image recall (last in first out)
- Dual-energy technology
- Color, black, white, inverse display
Image Recall
- 500,000 Images storage capacity (standard)
- Image conversion and export to jpg, png and bmp
- Image search and simulated playback
- Printer Ready
Additional Features
- 2 x 21” High resolution touch screen interface
- AI (Assisted Imaging™) Item Recognition
- Input / Exit Rollers to any length required
- Multi language support
- Network capable
- CIRTS (Computer Item Recognition Training Software)
- 5 Years Parts Inclusive Warranty Only
- Extended Belt Speed up to 0.50 m/s
Compliance Standards
- Complies with film safety ISO 1600 / 33 DIN high speed photographic film
- All equipment is CE (Europe) certified and manufactured to ISO 9001:2015 TUV standards, FDA 21CFR-Part 1003/1004 approved for use in the USA
- Radiation safety: Meets all applicable laws and regulations with respect to X-ray emitting devices, with directives 2014/30/EC, 2014/35/EC, 2006/42/EC, FDA 21CFR, SAPHRA
- Proprietary quality management test piece: Steel step wedge, CU wires, shims, organic/inorganic, belt speed 0.20 m/s
- *Approximate Values (Adjustable)
